一、粉塵污染控制爭議與系統優化

1、 Controversy over Dust Pollution Control and System Optimization

行業痛點： 傳統機械輸送設備（如螺旋輸送機、斗式提升機）在顆粒/粉末輸送過程中普遍存在開放式揚塵問題，尤其在食品、化工等對潔凈度要求嚴苛的行業，粉塵逃逸率高達15%-22%，既威脅操作人員呼吸健康，又增加車間清潔成本。

Industry pain points: Traditional mechanical conveying equipment (such as screw conveyors and bucket elevators) commonly suffer from open dust problems during particle/powder conveying processes, especially in industries with strict cleanliness requirements such as food and chemical, where dust escape rates can reach 15% -22%, posing a threat to the respiratory health of operators and increasing workshop cleaning costs.

技術爭議： 人工清掃與物理遮擋方案雖能短期緩解污染，但無法根除微米級顆粒擴散，且頻繁維護導致設備停機時間增加18%-25%。

Technical controversy: Although manual cleaning and physical shielding schemes can alleviate pollution in the short term, they cannot eradicate the spread of micron sized particles, and frequent maintenance increases equipment downtime by 18% -25%.

突破性方案：

Breakthrough plan:

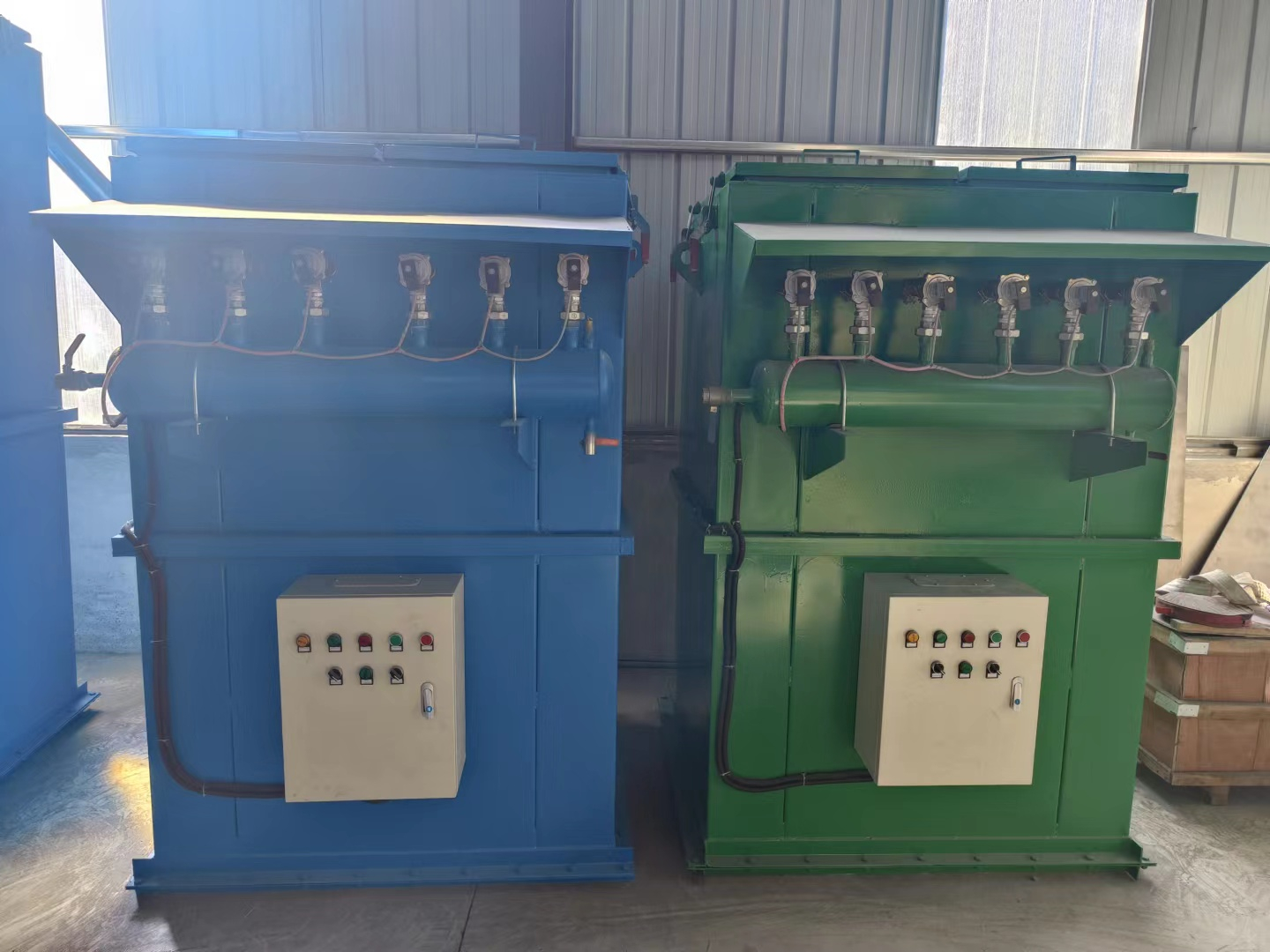

真空負壓輸送系統通過三級過濾模塊（初效G4+中效F7+高效H13）構建封閉式氣固分離通道，實測粉塵截留效率達99.97%（依據ISO 16890標準），配合智能壓差監測系統，當過濾器阻力超過800Pa時自動觸發脈沖反吹，確保連續運行工況下車間PM2.5濃度穩定≤35μg/m?（GBZ 2.1限值）。

The vacuum negative pressure conveying system constructs a closed gas-solid separation channel through a three-stage filtration module (initial efficiency G4+medium efficiency F7+high efficiency H13), and the measured dust interception efficiency reaches 99.97% (according to ISO 16890 standard). Combined with an intelligent pressure difference monitoring system, when the filter resistance exceeds 800Pa, it automatically triggers pulse blowback to ensure that the workshop PM2.5 concentration is stable ≤ 35 μ g/m under continuous operation conditions? (GBZ 2.1 limit).

二、物料活性保護技術爭議

2、 Disputes over material activity protection technology

核心矛盾： 氧化敏感物料（如金屬粉末、維生素原料）在接觸空氣輸送時易發生成分變性，傳統氮氣保護裝置因氣體消耗量過大導致噸物料處理成本增加120-150元。

Core contradiction: Oxidation sensitive materials (such as metal powders and vitamin raw materials) are prone to component denaturation when transported in contact with air. Traditional nitrogen protection devices increase material processing costs by 120-150 yuan per ton due to excessive gas consumption.

創新解決路徑：

Innovative solution path:

采用氣體循環式真空輸送架構，集成氧含量分析儀與動態補氣模塊，實現輸送腔體內氮氣濃度智能維持在98%±2%（滿足GMP附錄2惰性環境要求），通過文丘里效應將99.5%的保護氣體回收至儲氣罐重復利用，較開放式保護系統降低氣體消耗量67%。針對化學不穩定性物料，系統支持-20℃至50℃溫控輸送管道選配，避免熱敏性物質降解。

Adopting a gas circulation vacuum conveying architecture, integrating an oxygen content analyzer and a dynamic gas replenishment module, the nitrogen concentration in the conveying chamber is intelligently maintained at 98% ± 2% (meeting the inert environment requirements of GMP Appendix 2). Through the Venturi effect, 99.5% of the protective gas is recovered to the gas storage tank for reuse, reducing gas consumption by 67% compared to an open protection system. For chemically unstable materials, the system supports the selection of temperature controlled conveying pipelines from -20 ℃ to 50 ℃ to avoid the degradation of heat sensitive substances.

三、空間效率與柔性生產適配爭議

3、 Controversy over Space Efficiency and Flexible Production Adaptation

行業困境： 產線升級過程中，傳統輸送設備因定向傳輸特性需重新規劃廠房布局，設備安裝平均占用面積達8-12㎡/單元，且多點供料需額外配置中轉倉，導致初期投資增加23%-30%。

Industry dilemma: During the process of upgrading the production line, traditional conveying equipment needs to be re planned for factory layout due to its directional transmission characteristics. The average installation area of the equipment reaches 8-12 square meters per unit, and additional transfer warehouses need to be configured for multi-point feeding, resulting in an initial investment increase of 23% -30%.

系統重構方案：

System refactoring plan:

真空管網式輸送系統采用模塊化設計，通過φ50-200mm食品級不銹鋼管道實現三維空間內任意兩點間物料傳輸，垂直提升高度可達30m（滿足6層廠房需求），水平輸送距離擴展至80m。配置多通道分流閥組后，單臺主機可同時服務6-8個取料點，空間利用率較皮帶輸送機提升4.2倍。實測數據顯示，在制藥行業顆粒劑分裝車間應用后，設備布局密度降低57%，產線換型時間縮短至45分鐘（傳統系統需3小時）。

The vacuum pipe network conveying system adopts a modular design, which realizes material transfer between any two points in three-dimensional space through a diameter of 50-200mm food grade stainless steel pipeline. The vertical lifting height can reach 30m (meeting the needs of a 6-story factory building), and the horizontal conveying distance can be extended to 80m. After configuring a multi-channel diversion valve group, a single host can simultaneously serve 6-8 material collection points, and the space utilization rate is 4.2 times higher than that of a belt conveyor. Actual test data shows that after application in the granule packaging workshop of the pharmaceutical industry, the equipment layout density has been reduced by 57%, and the production line changeover time has been shortened to 45 minutes (traditional systems require 3 hours).

四、智能控制與能效平衡爭議

4、 Controversy over Intelligent Control and Energy Efficiency Balance

運營矛盾： 早期真空輸送設備因持續滿負荷運行導致電耗過高，平均功率達7.5kW·h/噸物料，且人工干預頻繁（每班次需2-3次參數校準）。

Operational contradiction: Early vacuum conveying equipment had high power consumption due to continuous full load operation, with an average power of 7.5 kW · h/ton of material, and frequent manual intervention (requiring 2-3 parameter calibrations per shift).

技術升級路徑：

Technological upgrade path:

搭載西門子S7-1200 PLC控制系統，通過物料流量傳感器實時調節真空泵轉速（20-100Hz無級變速），使能耗動態匹配實際輸送量。實測數據表明，在間歇式生產場景下，系統峰值功率從5.5kW降至2.2kW，綜合節電率達41%。同時開發遠程運維接口，支持OPC UA協議與工廠MES系統對接，實現故障代碼自診斷、備件壽命預警等高級功能，將非計劃停機率控制在0.3%以下。

Equipped with Siemens S7-1200 PLC control system, the vacuum pump speed (20-100Hz continuously variable) is adjusted in real time through material flow sensors, dynamically matching the energy consumption with the actual conveying volume. Actual test data shows that in intermittent production scenarios, the peak power of the system decreases from 5.5 kW to 2.2 kW, with a comprehensive energy-saving rate of 41%. Simultaneously developing remote operation and maintenance interfaces, supporting OPC UA protocol and factory MES system integration, realizing advanced functions such as fault code self diagnosis and spare parts life warning, and controlling unplanned downtime rates below 0.3%.
